Residential Locks - NJLocksmith247.com

Standard Mortise Locks

Residential Locks > Mortise Locks > Standard Mortise Locks

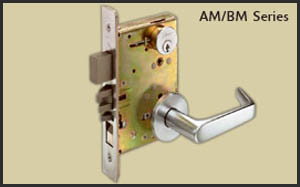

AM/BM Series-ARROW - NJLocksmith247.com



AM/BM Series-ARROW

Features:


Handing:


Handed; field reversible. The lockset can be re-handed without disassembling the lock case.

Door Thickness:


1-3/4" (4mm) standard. Optional door thickness available; consult factory.

Backset:

2-3/4" (70mm).

Lockcase:


Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Armored Front:


Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Faceplate:


Wrought brass or bronze, attached by machine screws to lockcase front.

Latchbolt:


Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.

Auxiliary Latchbolt:


9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt:


One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.

Hub:


Knob: nickel steel, 5/16" (8mm) and 9/32".
Lever: nickel steel, 5/16" (8mm).

Spacing:


Center to center, hub to cylinder: 3-5/8" (92mm).
Center to center, hub to turnpiece: 2-7/16" (62 mm).

Strike:


Wrought brass or bronze, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available.

Keys:


Two nickel silver standard.

Keying Features Available:


• Master keying
• Construction master keying
• Visual key control
• Concealed key control
• High security cylinder
• Interchangeable core (IC) - Choice Base, Plus, Flex and HS
