Standard Mortise Locks

Commercial Locks > Mortise Locks > Standard Mortise Locks

A Series-ARROW - NJLocksmith247.com

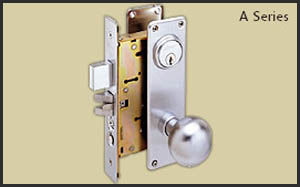

A Series-ARROW

Features:


Lock Case:


Heavy wrought steel, with zinc dichromate finish for corrosion resistance .093 thick, 4-3/16" deep (106.36 mm) x 6-1/16" high (153.98 mm) x 1" (25.4 mm) wide

Backset:


2-3/4" (69.85mm).

Door Thickness:


Standard for 1-3/4" (44.45 mm). Optional thickness available, up to 3" (76.20 mm)

Lock Front:


Brass or bronze, 8" (203.2 mm) x 1-1/4" (31.75 mm). Bevel adjustable from flat to beveled 1/8" (3.17 mm) in 2" (50.8 mm).

Latchbolt:


Two piece, solid brass, anti-friction bolt, with full 3/4" (19.05mm) throw. Satin chrome (26D) finish.

Deadbolt:


Solid brass, 1/2" (12.7 mm) x 1-1/8" (28.57 mm) bolt with hardened steel inserts. Full 1" (25.4 mm) throw. Satin chrome (US26D) finish.

Deadlocking Latchbolt:


Brass, 1/2" (12.7 mm) throw. Satin chrome (US26D) finish.

Hubs:


Pressure treated steel.

Strike:


Brass, bronze or stainless steel. ANSI A115.1, 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm) lip to center x 3/32" (2.38 mm). Curved lip. Wrought box strike and screws supplied with lockset.

Handing:


All locks except hotel function are fully reversible. Deadbolt functions require handed strikes.

Cylinder, Standard:


Solid brass, 6 pin mortise, 1-1/8" (28.57 mm) in length for 1-3/4" (44.45 mm) door. Longer cylinders available for thicker doors. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Supplied with two 6 pin nickel silver keys.

Cylinder Options:


Interchangeable core. Lockset supplied with appropriate mortise cylinder housing–either 6 or 7 pin (Hotel function–6 pin only). Supplied fewer cores. Will accept cores as manufactured by Best™, Falcon™ and other similar style cores. High Security–For cylinders meeting UL437 for pick and drill resistance, ASSA cylinders are available provided there is no existing contractual system restriction.

Finish:


US3, US4, US10, US10B, US26, US26D, US32, US32D.
Note: Depending upon trim design, and according to base metal, some finishes may not be available.
