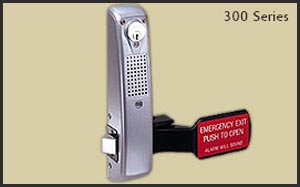

Paddle, chassis and cover made from a non-ferrous alloy. Cover 12-3/4" (323.85 mm) x 2" (50.8 mm) x 2-5/8" (66.67 mm); paddle projection 3-1/4" (88.25 mm); length to end of paddle 10-3/8" (263.52 mm).
Power/Electronics:
9 volt battery powered. Modern solid state electronics.
Latch:
3/4" (19.05 mm) latchbolt monitored by an electronic sensor switch. Any unauthorized movement of the latchbolt will cause unit to go into alarm.
Doors:
For outward swinging doors 1-3/4" (44.45 mm) thick with a 4" minimum stile.
Alarm/Horn:
Alarm sounds for 2 minutes, shuts off and automatically rearms itself. Piercing, dual frequency pulsating horns. Rated for 90 decibels at 6 feet.
Cylinders:
Inside cylinder operation to arm or disarm unit using 1-1/8" (28.57 mm) mortise cylinder. (Order cylinder separately).
Hand:
Reversible. Units are packed RHRB.
Certification and Compliance:
UL listed. Designed to meet ANSI 156.5-1984 and A117.1-1980 for Accessibility Standards.
