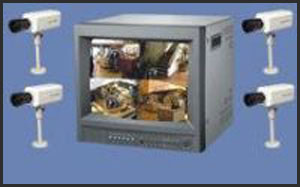

Pvs-2/4- color cctv system with built-in switcher and quad splitter, four varifocal color cameras
CCTV system features four 3.5 - 8mm varifocal color cameras,
14" color monitor with built-in sequential switcher, which minimizes the number of components and connections required for set-up.
The provideo advantage allows for the addition of any CCTV camera to these systems using rear bnc inputs!
Each system camera has a built-in miniature microphone and 2-way communications speaker.
A sixty ft. cable and camera mount also included for each camera.
All monitors have an alarm input and output via rear terminal strip. Additional b/w (pvs-camb) and color (pvs-camc) cameras are available for the expansion of the CCTV system.
Technical specifications:
Camera type
Four color ccd cameras
Camera - minimum illumination
1.0 lux per camera
Camera resolution
350 lines per camera
Camera - electronic shutter speed
Auto 1/60 - 1/100,000 seconds
Camera lens
3.5 - 8mm varifocal lens with manual iris per camera
Camera - power supply
Cameras are powered by the monitor
Switcher
Automatic sequential switcher - override for homing or bypass -sequencing time adjustable from 0.50 to 30 seconds
Monitor type
14 inch monitor - 450 lines resolution - din and bnc input and output - ul listed - up front controls - IR remote control included
